Honda GXV160 Commercial Lawn Mower Engine: Complete Guide, Specs & Market Price in Pakistan

Maintaining expansive lawns across farmhouses along Bedian Road, Raiwind, and Multan Road, or managing sports turf in housing societies like DHA, Bahria Town, and Gulberg comes with serious groundskeeping challenges. During the peak summer and monsoon months, local grasses like coarse Bermuda, dense Korean, and thick Dhaka grass experience aggressive growth. Standard cutters and light-duty mowers quickly fail under these harsh conditions.

Groundskeepers and commercial landscapers in Pakistan face the same recurring headaches every season:

• Severe Engine Overheating: Cheap, unbranded engines choke and seize when operating continuously in 40°C+ ambient summer temperatures.

• Frequent Stalling & Power Loss: Underpowered electric or generic 2-stroke engines bog down instantly when hit with damp, overgrown turf.

• Spark Plug & Carburetor Fouling: Mixing 2-stroke oil with petrol leads to carbon buildup, thick smoke, constant plug fouling, and stubborn starting issues.

• Crankshaft Damage & Deck Wear: Inferior vertical shaft engines suffer bent crankshafts and cracked housings after minor impacts with hidden rocks, dry roots, or uneven soil.

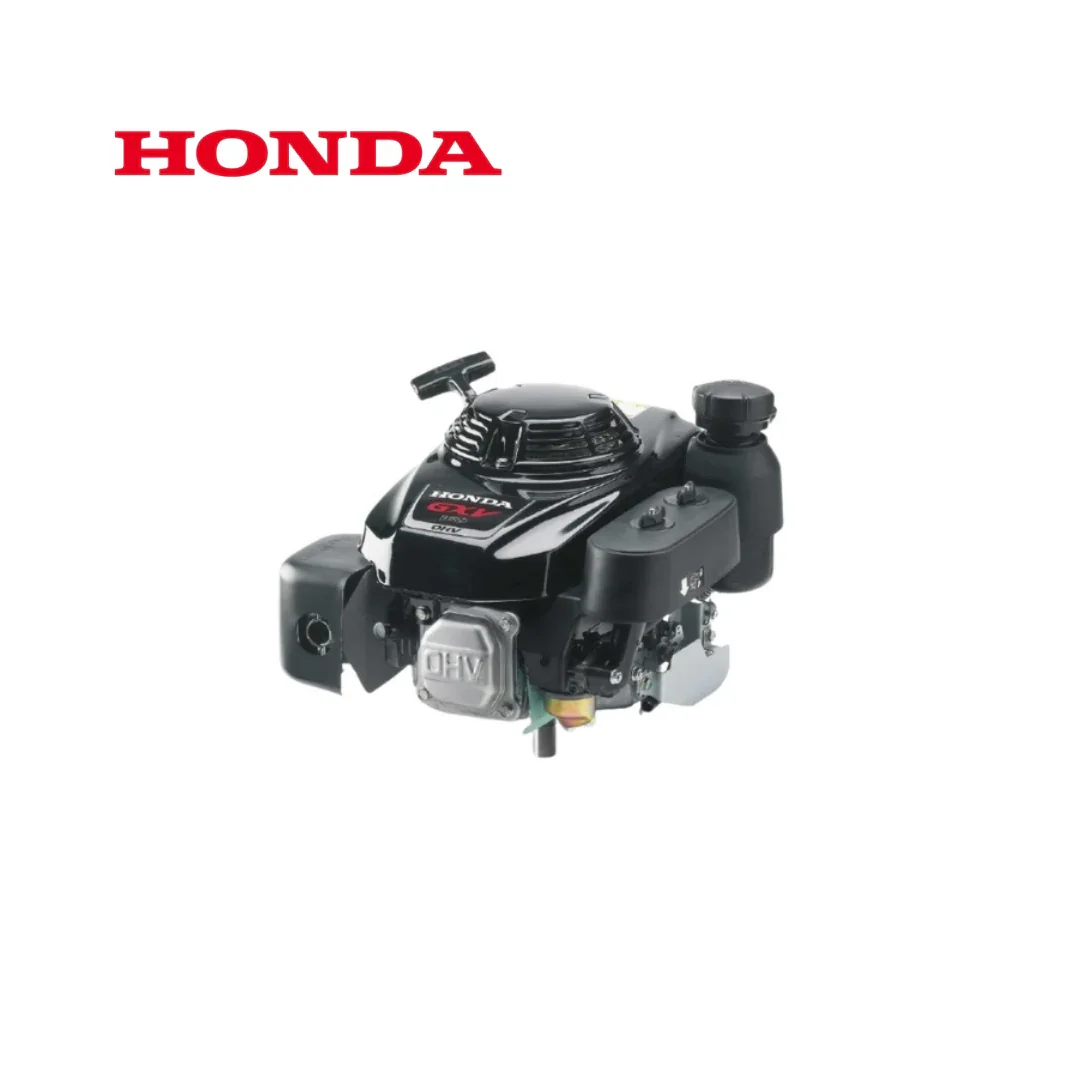

To overcome these obstacles, commercial groundskeeping operations rely on a heavy-duty, commercial-grade lawn mower engine. The Honda GXV160 163cc 5.5 HP engine serves as the industry standard vertical shaft motor engineered to deliver continuous, high-torque power through extreme heat, thick grass, and demanding daily workloads.

Technical Specifications Table

Here is the complete engineering breakdown for the commercial Honda GXV160 vertical shaft engine:

Specification Parameter	Factory Technical Details
Engine Model	Honda GXV160
Engine Type	Air-Cooled 4-Stroke OHV Single-Cylinder Vertical Shaft
Displacement	163 cc
Bore x Stroke	68.0 mm x 45.0 mm
Net Horsepower Output	5.5 HP (4.1 kW) @ 3,600 RPM
Net Torque	9.6 N·m (7.1 lbs·ft) @ 2,500 RPM
Compression Ratio	8.0:1
Cylinder Sleeve	Cast Iron Cylinder Sleeve
Fuel Type	Pure Unleaded Petrol (Min. 87 Octane)
Fuel Tank Capacity	1.5 Liters
Fuel Consumption	Approx. 0.9 to 1.1 Liters/hour @ 3,600 RPM
Engine Oil Capacity	0.65 Liters (SAE 10W-30 / SAE 20W-50)
Ignition System	Transistorized Magneto Ignition
Starting System	Heavy-Duty Recoil Starter with Mechanical Decompression
Air Filtration	Dual-Element System (Foam Pre-Cleaner + Paper Cartridge)
Dry Weight	Approx. 14.8 kg

Deep-Dive Features & Commercial Benefits

1. Cast Iron Cylinder Sleeve for Extreme Thermal Resilience

Pakistani summers place extreme thermal stress on air-cooled engines. While residential engines use soft aluminum cylinder walls that warp or score when overheated, the gxv160 lawn mower engine features a heavy-duty cast iron cylinder sleeve. This structural enhancement reduces oil consumption, maintains cylinder compression under heavy thermal loads, and extends total engine operational life well beyond 2,000 continuous hours.

2. Overhead Valve (OHV) Design & Pure Petrol Efficiency

The Overhead Valve (OHV) arrangement positions the intake and exhaust valves directly above the piston crown. This layout ensures faster fuel intake, higher combustion efficiency, and cooler running temperatures.

As a commercial 4 stroke lawn mower engine, the GXV160 operates on pure unleaded petrol. Eliminating 2-stroke oil mixing delivers key operational benefits:

• Zero exhaust smoke to annoy workers or estate residents.

• Reduced carbon buildup inside the combustion chamber and exhaust port.

• Lower long-term fuel costs, consuming just 0.9 to 1.1 liters per hour under heavy grass loads.

3. Dual-Element Air Filter for Dusty Local Conditions

Dust and fine soil particles are major causes of premature engine wear in local groundskeeping. Dry soil, unpaved tracks, and flying grass debris quickly clog single-stage air filters, pulling dirt straight into the carburetor.

The GXV160 uses a dual-element air filtration system:

• Outer Foam Pre-Cleaner: Traps large grass clippings, leaves, and heavy dust particles. It can be washed and re-oiled during routine servicing.

• Inner Pleated Paper Element: Captures fine dust particles before air reaches the intake, protecting the carburetor jets and piston rings from abrasive scoring.

4. High Low-End Torque for Thick & Wet Monsoon Turf

Cutting through thick, wet Bermuda or dense Korean grass requires raw torque rather than raw speed. When a standard lawn grass cutting machine engine hits dense grass, its RPM drops instantly, causing the mower deck to choke and stall. The GXV160 produces 9.6 N·m of net torque at a low 2,500 RPM. This torque reserve keeps the cutting blade spinning cleanly through overgrown monsoon grass without engine bogging.

Financial ROI & Market Analysis: Lawn Mower Engine Price in Pakistan

When searching for a replacement honda lawn mower engine price in pakistan, buyers usually choose between three main product categories:

1. Unbranded / Copy Engines (Rs. 28,000 – Rs. 42,000): Low upfront cost, but built with soft aluminum sleeves, weak recoil springs, and low-grade carburetors. They routinely fail within 3 to 6 months of heavy summer use.

2. Honda Residential GC/GCV Series Engines (Rs. 65,000 – Rs. 85,000): Designed for light residential mowing (1–2 hours per week). They lack cast iron sleeves and heavy-duty air filtration, leading to accelerated wear when used commercially.

3. Original Honda Commercial GXV160 (Rs. 115,000 – Rs. 145,000): The top-tier commercial engine choice. Higher initial investment offset by years of reliable daily service, minimal maintenance downtime, and ready spare parts availability.

Financial Comparison: Original Honda GXV160 vs. Cheap Copy Engines

• Initial Investment:

  • Cheap Copy Engine: Low (Rs. 30,000 – Rs. 40,000)

  • Honda GXV160: Premium Commercial Tier (Rs. 115,000 – Rs. 145,000)

• Engine Lifespan:

  • Cheap Copy Engine: 150 to 300 Operational Hours (Seizes or loses compression in 1 season)

  • Honda GXV160: 2,000+ Operational Hours (5 to 8 years of commercial groundskeeping)

• Fuel Efficiency & Consumption:

  • Cheap Copy Engine: ~1.6 to 1.9 Liters/hour (Poor combustion, high heat loss)

  • Honda GXV160: ~0.9 to 1.1 Liters/hour (OHV efficiency saves 35-40% on fuel)

• Maintenance & Repair Downtime:

  • Cheap Copy Engine: Frequent starter cord snapping, carburetor flooding, and spark plug fouling

  • Honda GXV160: Low maintenance requirements; basic oil and filter changes keep it running smoothly

Investing in a genuine 5.5 hp petrol lawn mower engine lowers overall operating costs by cutting fuel bills, preventing labor downtime during peak cutting season, and eliminating annual engine replacements.

Step-by-Step Maintenance & Care Guide for Pakistani Conditions

Proper maintenance protects your investment and ensures smooth, one-pull starting in all weather conditions.

How to Change Lawn Mower Engine Oil

Operating a heavy duty lawn mower engine in temperatures above 40°C degrades motor oil quickly. Follow this routine to protect internal components:

1. Service Intervals: Change oil after the first 5 hours of initial break-in, and then every 50 operational hours (or at the start of every cutting season).

2. Select Correct Oil Grade: Use SAE 20W-50 for hot summer months, or SAE 10W-30 for milder spring and winter conditions. Fill capacity is exactly 0.65 Liters.

3. Warm Up & Drain: Run the engine for 2 minutes to warm up the oil, then turn off the fuel valve and disconnect the spark plug boot.

4. Drain Old Oil: Tilt the mower deck toward the oil fill pipe (keeping the carburetor facing upward to prevent oil from entering the air filter) and drain the used oil into a pan.

5. Refill to Spec: Pour fresh oil into the filler neck until it reaches the upper limit mark on the dipstick. Do not overfill, as excess oil causes crankcase pressure and blue exhaust smoke.

How to Clean the Dual-Element Air Filter & Carburetor

Dusty fields can quickly restrict airflow, causing the engine to run rich and waste fuel.

1. Inspect Air Filter Weekly: Remove the air cleaner cover wing nuts. Pull out both the foam pre-cleaner and paper filter element.

2. Clean Foam Element: Wash the outer foam element in warm soapy water, rinse thoroughly, and allow it to dry completely. Saturate it with 1 tablespoon of clean engine oil and squeeze out all excess before reinstalling.

3. Clean Paper Element: Tap the inner paper cartridge gently on a flat surface to dislodge loose dust. Never use high-pressure air or wash the paper element with petrol, as this breaks down the filter fibers. Replace it if heavily discolored.

4. Service Carburetor Sediment Bowl: Turn off the fuel line valve. Unscrew the brass bolt at the bottom of the carburetor float bowl using a 10mm wrench. Clean out accumulated water and sediment deposits, then reinstall the bowl with a fresh O-ring seal.

Frequently Asked Questions (FAQs)

Q1: Can I replace my existing bent or damaged mower engine with the Honda GXV160?

Yes. The Honda GXV160 uses a standard universal vertical shaft mounting bolt pattern compatible with almost all 21-inch commercial cast-aluminum and heavy-duty steel mower decks. Ensure your drive pulley or blade adapter matches the standard 7/8-inch (22.2 mm) vertical crankshaft diameter before mounting.

Q2: What is the main difference between Honda GC/GCV engines and GXV engines?

Honda GC/GCV engines are residential motors featuring overhead belt (OHC) designs and aluminum cylinder walls intended for light home use. The GXV series represents Honda’s heavy-duty commercial line, featuring an overhead valve (OHV) pushrod design, cast iron cylinder sleeve, dual-element air filtration, and a steel crankshaft designed for continuous commercial workloads.

Q3: What petrol-to-oil ratio is required for the Honda GXV160?

None. The GXV160 is a pure 4-stroke engine. It runs on pure unleaded petrol straight from the fuel pump. Never mix 2-stroke oil into the petrol tank. Engine oil is poured separately into the dedicated 0.65-liter oil sump crankcase.

Final Verdict

When managing large lawns, sports fields, or public parks, relying on weak engines leads to constant downtime, high repair bills, and uneven turf finishes. The Honda GXV160 lawn mower engine delivers the ideal combination of commercial power, fuel efficiency, and long-term durability. Its cast iron cylinder sleeve, low-end torque output, and dual-stage air filtration make it a reliable choice for commercial landscapers and property owners across Pakistan.
